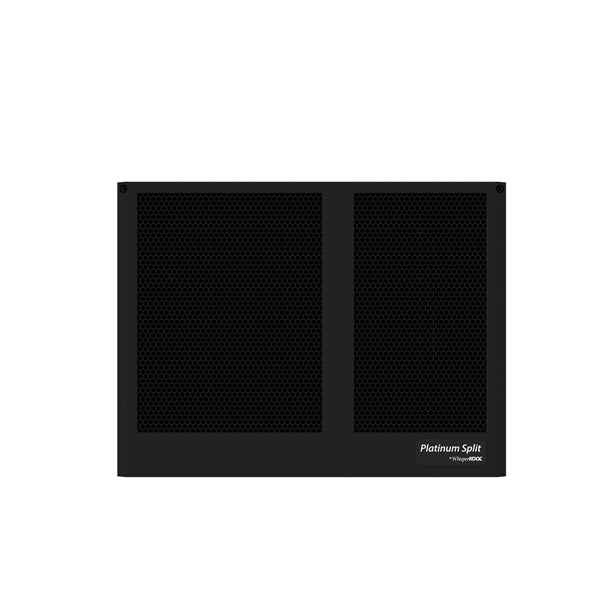

Platinum Split 4000 - Wine Cellar Cooling System
The Ductless Platinum Split 4000 is built for powerful, dependable cooling with minimal noise and visual impact. Its two-part configuration allows the evaporator to be discreetly installed inside the wine cellar, while the condensing unit can be placed up to 100 feet away—offering maximum flexibility for tailored installations. Favoured by contractors for its durability and reliability, this system is well-suited for both residential and commercial cellars.
Note: A qualified HVAC-R technician is required for the installation of Platinum Split 4000 systems. Failure to have the system installed by a qualified technician will void the warranty.
The Split System does NOT come with its own line set.
Designed & Assembled in California
***** Additional Information *****
Dimensions:
EVAPORATOR - 13”L x 20”W x 10.5”H
CONDENSER -23”L x 15.75”W x 15.3H
Insulated Line Set:
1/2”Suction (5/8" if greater than 50ft)
1/4”Liquid
Drainline: 1/2” ID clear plastic tubing
Cellar Size: Approx. 1000 Cu.ft

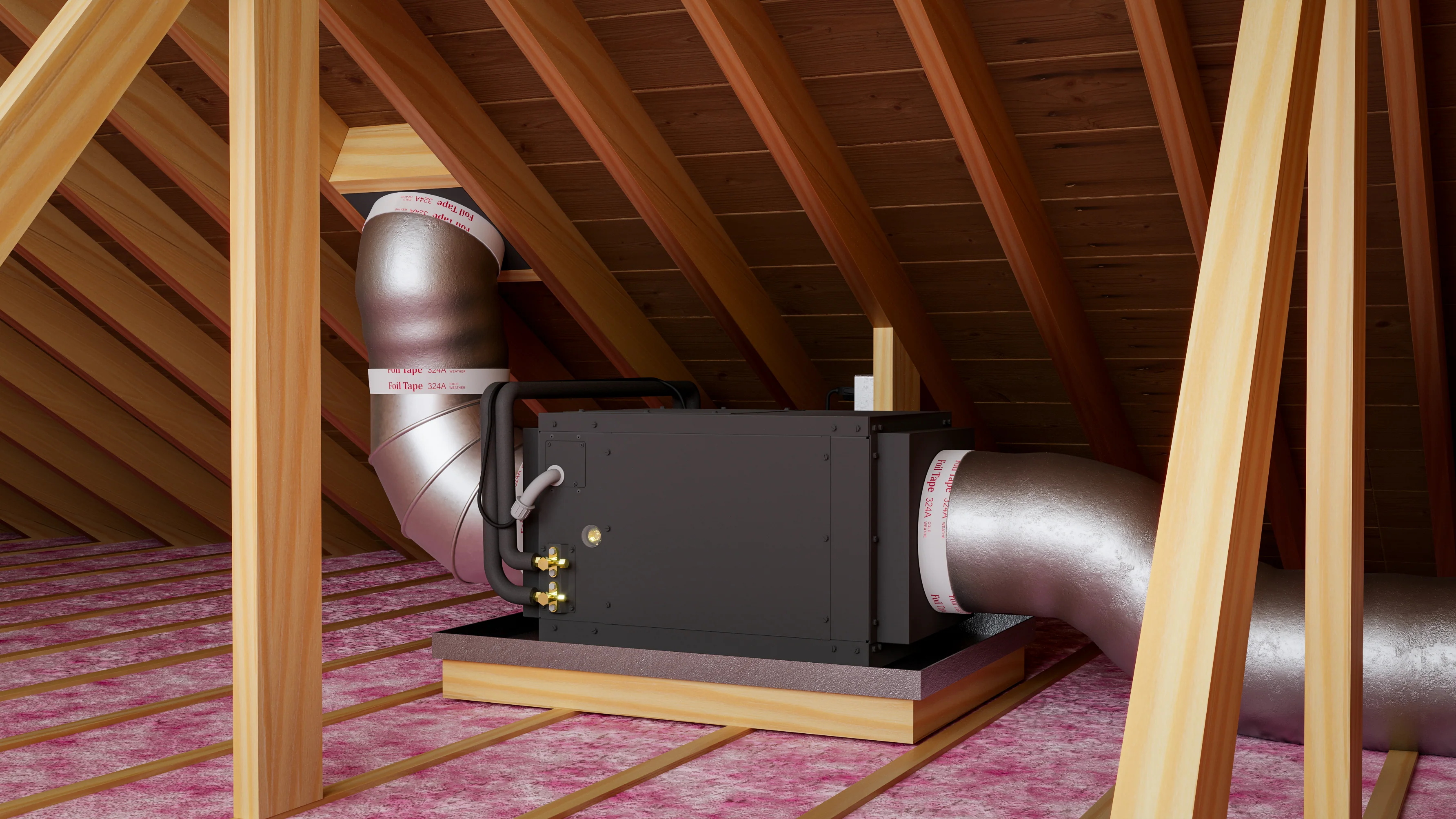

Described in the simplest terms, a split system is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator unit is located in or near your cellar, and the condensing unit is generally located outside, or in an attic or utility room.
If you don’t mind seeing the grille of your cooling unit in your cellar, a wall-mounted split system is what you need. If you prefer your unit to be out of sight, you should get a fully ducted split system. The choice is yours.
24Volt
For the Split System series, a 24V option is also available which allows you to tie into your home electronic thermostat or home automation system, please inquire.
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
***** Technical Specs *****
***** Product Manuals *****
Platinum Split Ductless 4000 or 8000 Owners Manual
Platinum Split Ductless 4000 or 8000 Overview Manual
Platinum Split 4000 Ductless Tutorial Video
Platinum Split Ducted 4000 or 8000 Owners Manual
Platinum Split Ducted 4000 or 8000 Overview Manual
***** Warranty *****
Warranty Check List Ductless – R134a Products
Warranty Check List Ducted – R134a Products
A limited 2-year product warranty with up to an additional(1) year grace period for installation is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOO
***** Shipping Information *****
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
Original: $5,414.39
-65%$5,414.39
$1,895.04
