Platinum Split 8000 Wine Cellar Cooling System
For those who value silence and subtlety in their wine cellar, the Ducted Platinum Split 8000 is the clear choice. This high-performance system places both the evaporator and condenser outside the cellar, allowing for virtually silent operation and preserving the visual integrity of your space. Designed for discerning collectors, it delivers efficient, unobtrusive climate control while maintaining the clean lines and elegance of your cellar. Crafted with premium components for long-lasting performance, it provides a stable, reliable environment to safeguard your finest vintages.
Designed & Assembled in California
***** Additional Information *****

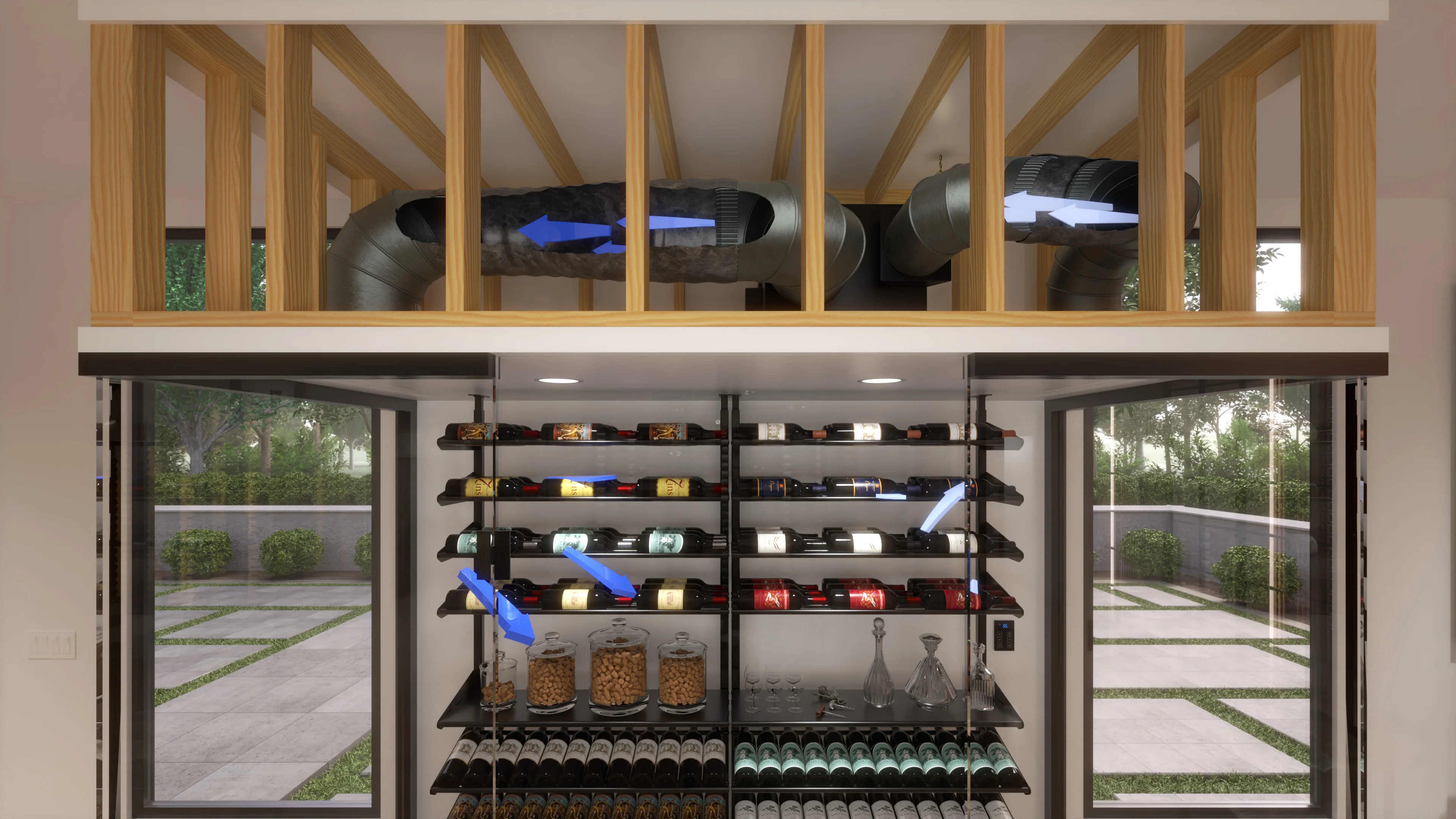

Ducted Split Systems split the cooling system in two, where the condenser can be placed in a space better suited for heat and noise dissipation and the evaporator is ducted nearby the cellar. This keeps the wine cellar quiet and vibration-free.
Dimensions:
Evaporator: 20.5”W x 15.5”H x 20”D
Condenser: 12”W x 13.5”H x 18”D
Insulated Line Set:
1/2”Suction (5/8" if greater than 50ft)
1/4”Liquid
Drainline: 1/2” ID clear plastic tubing
Cellar Size: Approx. 1750 Cu.Ft
The Split System does NOT come with its own line set.

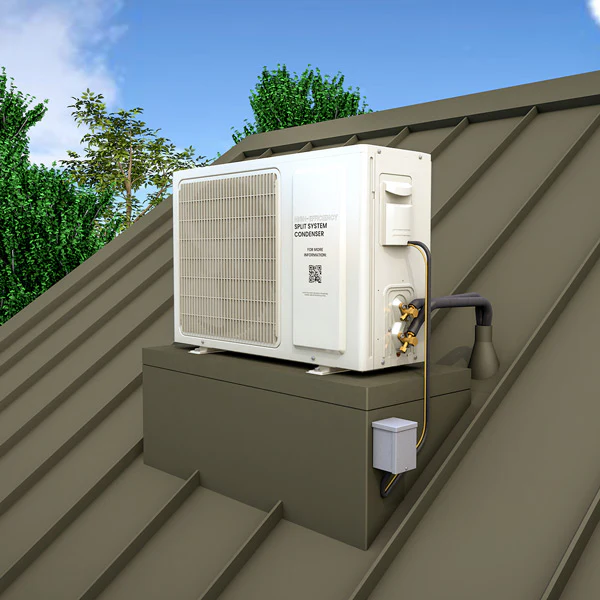

Described in the simplest terms, a split system is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator unit is located in or near your cellar, and the condensing unit is generally located outside, or in an attic or utility room.
24Volt
For the Split System series, a 24V option is also available which allows you to tie into your home electronic thermostat or home automation system, please inquire.
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
- Virtually silent operation
- Liquid bottle probe
- Humidity control
- Alarm options
- 55°F temperature delta
- 220V Condenser can be placed outdoors
***** Technical Specs *****
***** Product Manuals *****
Platinum Split Ductless 4000 or 8000 Owners Manual
Platinum Split Ductless 4000 or 8000 Overview Manual
Platinum Split 4000 Ductless Tutorial Video
Platinum Split Ducted 4000 or 8000 Owners Manual
Platinum Split Ducted 4000 or 8000 Overview Manual
***** Warranty *****
Warranty Check List Ductless – R134a Products
Warranty Check List Ducted – R134a Products
A limited 2-year product warranty with up to an additional(1) year grace period for installation is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOl
***** Shipping Information *****
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contacted by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
